Tall Tile Base and Wainscot Wall Detail

Materials

Elements

About this detail

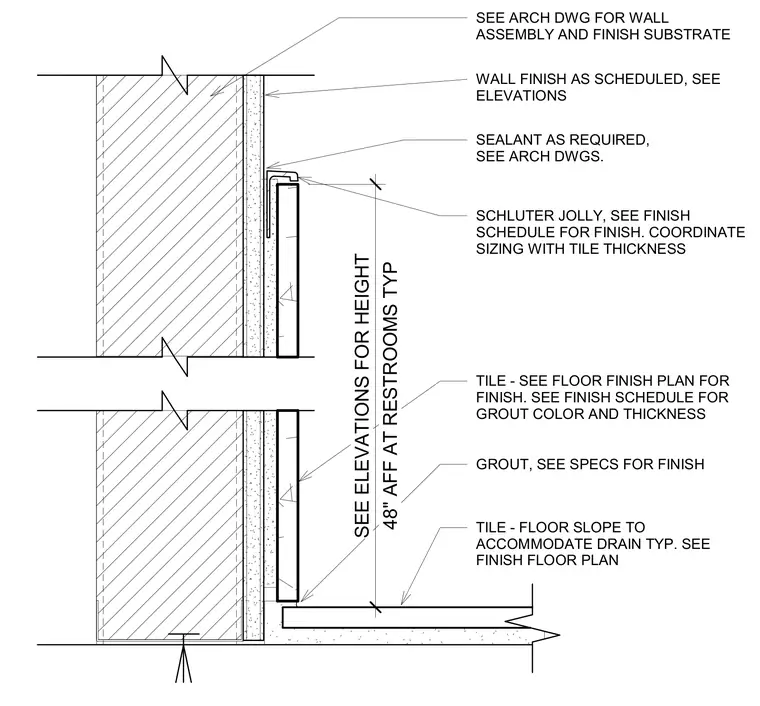

A tall tile wainscot and base assembly is installed over a concrete or masonry substrate wall with a specified finish substrate and wall finish. A Schluter Jolly edge trim profile caps the top of the tile wainscot, sized to coordinate with the tile thickness and sealed with sealant as required. The floor features finish tile set over grout with a floor slope to accommodate drainage typical, coordinating with the finish floor plan. The top of the wainscot is established at forty-eight inches above finished floor typical at restrooms or per interior elevations.
