Plumbing · I-G9QZ2

Backflow Assembly

Materials

Elements

About this detail

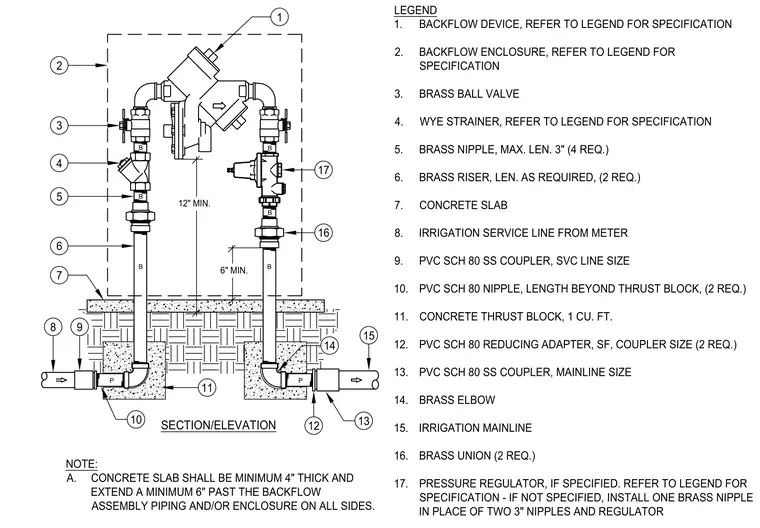

A backflow prevention assembly is mounted on a concrete slab foundation that is a minimum of 4 inches thick and extends at least 6 inches past the piping and enclosure on all sides. The irrigation service line from the meter connects via PVC Schedule 80 stainless steel couplers and nipples to a concrete thrust block, transitioning upward through brass risers, unions, and a wye strainer. The assembly incorporates a backflow device enclosed within a protective housing, a pressure regulator, and brass ball valves. A clearance of 12 inches minimum is maintained beneath the backflow device, with a 6-inch minimum distance above the concrete slab. The piping exits through brass elbows and PVC Schedule 80 adapters to the irrigation mainline.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
