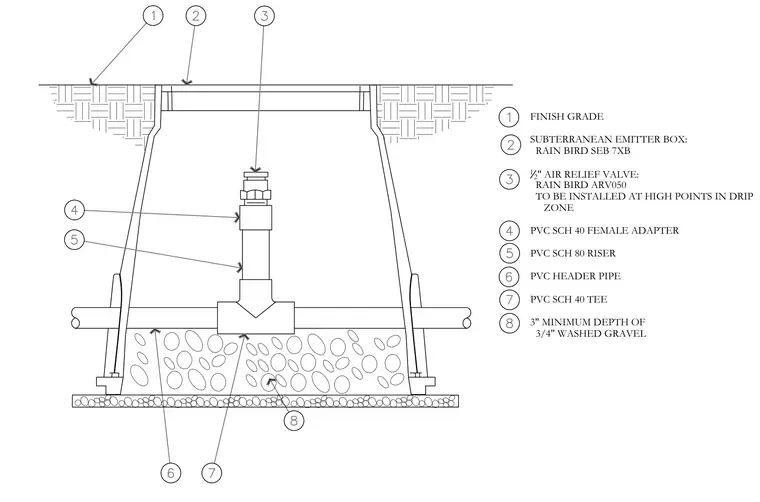

An air relief valve is installed at high points in the drip zone on a PVC schedule 80 riser connected to a PVC schedule 40 tee on the PVC header pipe. A subterranean emitter box houses the valve assembly, flush with the finish grade. A PVC schedule 40 female adapter joins the valve to the riser. The entire assembly rests on a minimum depth of three inches of three-quarter-inch washed gravel.
FINISH GRADE SUBTERRANEAN EMITTER BOX: RAIN BIRD SEB 7XB 12 " AIR RELIEF VALVE: RAIN BIRD ARV050 TO BE INSTALLED AT HIGH POINTS IN DRIP ZONE PVC SCH 40 FEMALE ADAPTER PVC SCH 80 RISER PVC HEADER PIPE PVC SCH 40 TEE 3" MINIMUM DEPTH OF 3/4" WASHED GRAVEL
