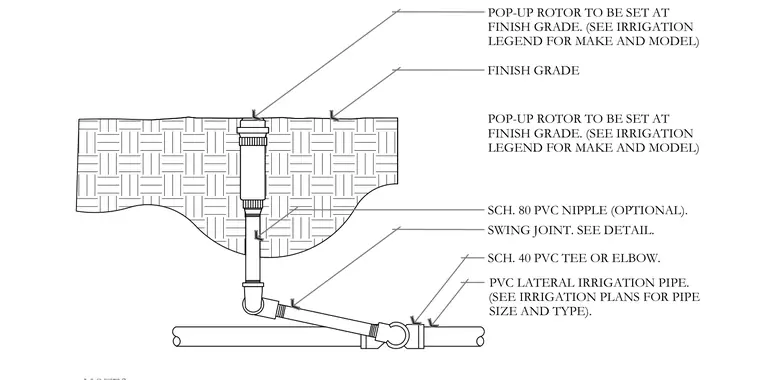

A pop-up rotor is set flush with the finish grade and connected to an optional schedule 80 PVC nipple. The nipple ties into a swing joint for flexibility, which connects to a schedule 40 PVC tee or elbow. The fitting attaches directly to the PVC lateral irrigation pipe sized per the irrigation plans.
SCH. 80 PVC NIPPLE (OPTIONAL). SWING JOINT. SEE DETAIL. SCH. 40 PVC TEE OR ELBOW. PVC LATERAL IRRIGATION PIPE. (SEE IRRIGATION PLANS FOR PIPE SIZE AND TYPE). POP-UP ROTOR TO BE SET AT FINISH GRADE. (SEE IRRIGATION LEGEND FOR MAKE AND MODEL) FINISH GRADE POP-UP ROTOR TO BE SET AT FINISH GRADE. (SEE IRRIGATION LEGEND FOR MAKE AND MODEL)
