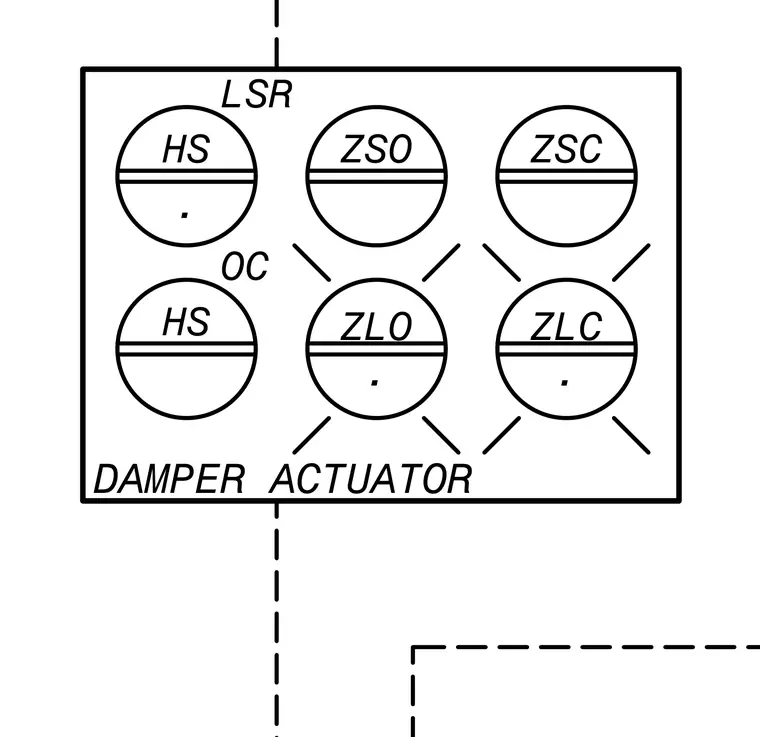

A damper actuator diagram indicates operational states including hand switch (HS), limit switch open/closed (ZSO, ZSC), limit switch relay (LSR), and open/closed (OC) positions.
HS OC DAMPER ACTUATOR ZSO ZSC HS . LSR . ZLO . ZLC
