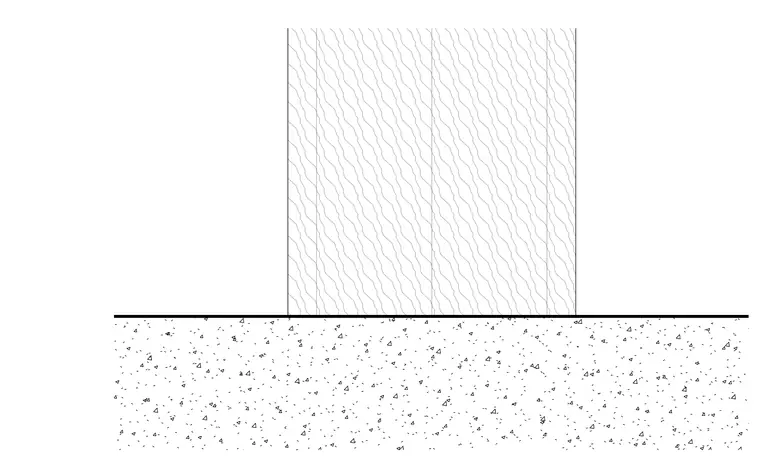

Vertical wood fins are attached to an intermediate support bearing on a concrete structural element. The wood members are shown with hatching, aligning vertically along the mounting plane. The concrete substrate features standard triangular aggregate hatching with a defined boundary line.
