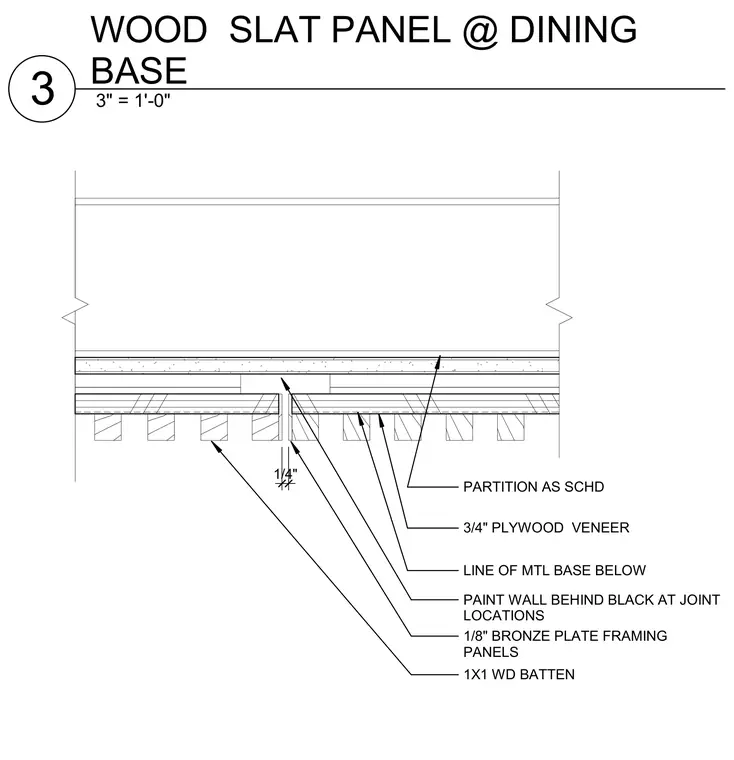

A wood slat panel system is mounted over a three-quarter-inch plywood veneer partition as scheduled. One-by-one wood battens form the exterior slats with a one-quarter-inch joint space, backed by one-eighth-inch bronze plate framing panels. The wall behind is painted black at joint locations, and a metal base line is indicated below.
1X1 WD BATTEN 3/4" PLYWOOD VENEER PARTITION AS SCHD 1/8" BRONZE PLATE FRAMING PANELS PAINT WALL BEHIND BLACK AT JOINT LOCATIONS LINE OF MTL BASE BELOW 1/4" 3" = 1'-0" 3 WOOD SLAT PANEL @ DINING BASE
