Mechanical · I-F96TH

Wet Scrubber Drain Pump 2

Elements

About this detail

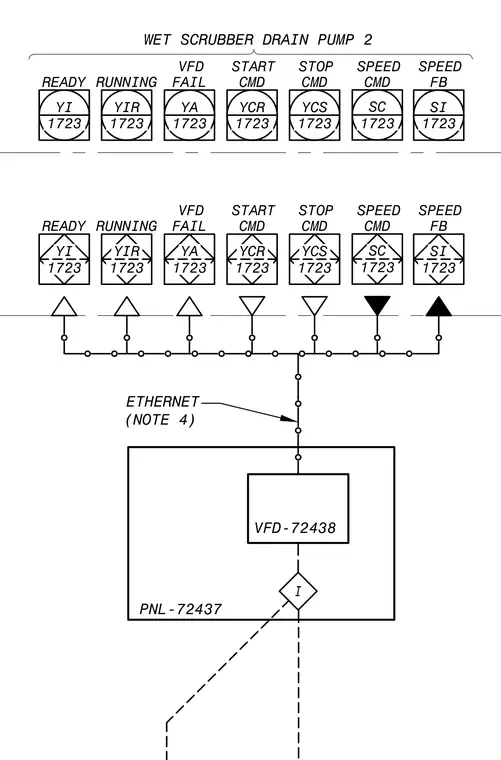

This instrumentation and control diagram outlines the I/O signals for wet scrubber drain pump 2 linked through variable frequency drive VFD-72438 within panel PNL-72437. Signal points include ready status, running status, VFD failure, start command, stop command, speed command, and speed feedback via Ethernet communication.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
