Electrical · I-F35SS

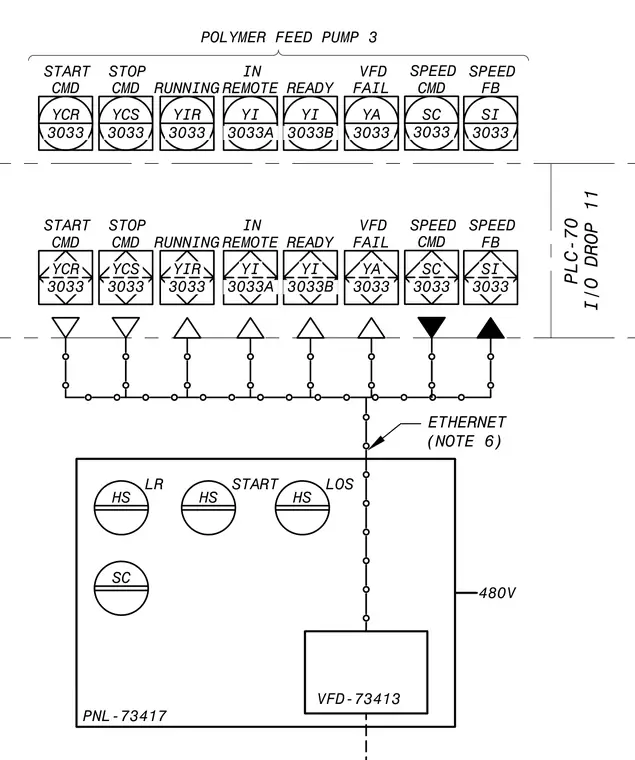

Polymer Feed Pump VFD Control Diagram

About this detail

Control schematic for polymer feed pump 3 detailing connections between panel PNL-73417 and variable frequency drive VFD-73413 at 480 volts. Status points include start command, stop command, running status, remote status, ready status, VFD failure, speed command, and speed feedback. Communication is routed via an Ethernet connection per note 6 to PLC-70 I/O drop 11.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
