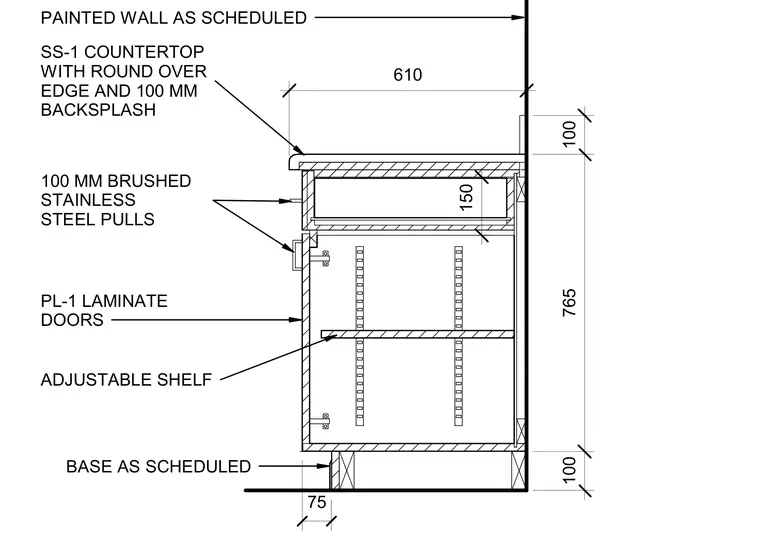

A lower millwork cabinet features PL-1 laminate doors and an adjustable shelf on standard shelf standards mounted against a painted wall. The assembly includes a 610 millimeter deep SS-1 countertop with a round-over edge and a 100 millimeter backsplash. Brushed stainless steel pulls measuring 100 millimeters are installed on the drawer and door faces. The cabinet sits on a base as scheduled with a 75 millimeter toe kick and stands at an overall height of 765 millimeters plus base and countertop.
SS-1 COUNTERTOP WITH ROUND OVER EDGE AND 100 MM BACKSPLASH BASE AS SCHEDULED 150 100 MM BRUSHED STAINLESS STEEL PULLS PL-1 LAMINATE DOORS ADJUSTABLE SHELF 610 100 765 100 PAINTED WALL AS SCHEDULED 75
