Polymer Feed Pump 4 PLC Control Loop Diagram

About this detail

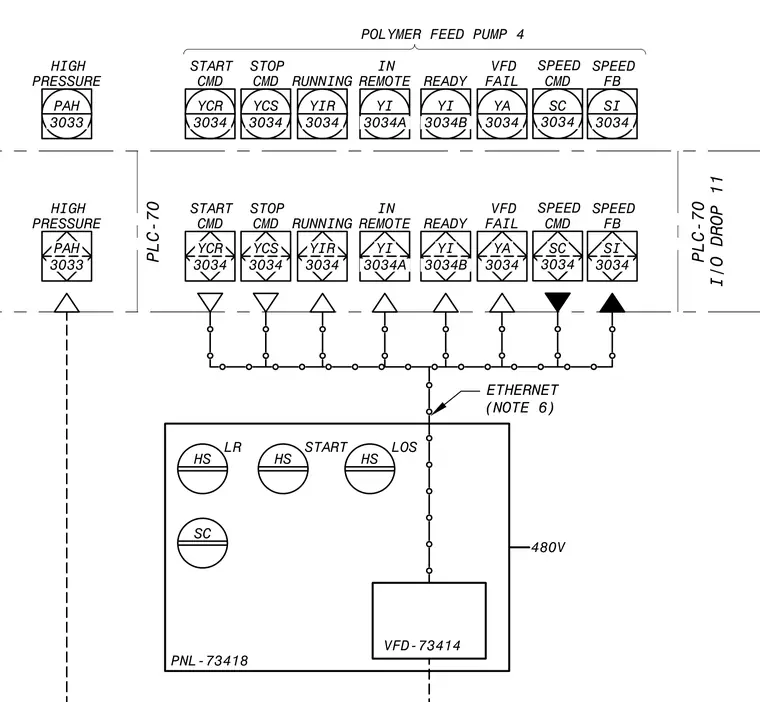

Control loop diagram detailing the instrumentation, variable frequency drive VFD-73414, and programmable logic controller PLC-70 connections for Polymer Feed Pump 4. Signals include start command, stop command, running status, remote status, ready status, VFD failure, speed command, and speed feedback routed through an Ethernet connection per note 6. High pressure alarm PAH 3033 is integrated alongside control panel PNL-73418 operating at 480V with local-remote, start, and local-off-selector switches.
