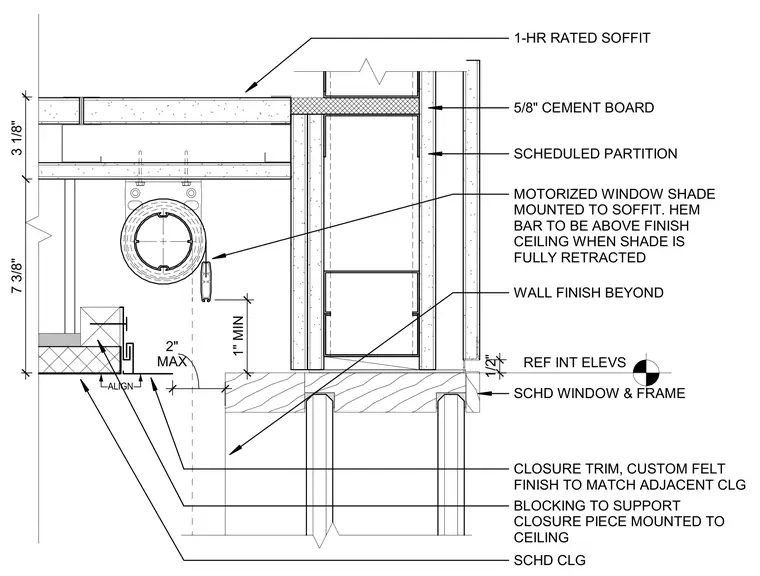

A motorized window shade is mounted directly to the underside of a one-hour rated soffit assembly. The shade hem bar is positioned to sit above the finished ceiling level when fully retracted. Framing includes a scheduled partition with five-eighths inch cement board and wood blocking supporting a ceiling closure piece. A custom felt-finished closure trim aligns with the adjacent ceiling and maintains a maximum two-inch and minimum one-inch clearance.
REF INT ELEVS SCHEDULED PARTITION SCHD WINDOW & FRAME 3 1/8" 7 3/8" SCHD CLG 1-HR RATED SOFFIT MOTORIZED WINDOW SHADE MOUNTED TO SOFFIT. HEM BAR TO BE ABOVE FINISH CEILING WHEN SHADE IS FULLY RETRACTED 5/8" CEMENT BOARD 1/2" WALL FINISH BEYOND BLOCKING TO SUPPORT CLOSURE PIECE MOUNTED TO CEILING CLOSURE TRIM, CUSTOM FELT FINISH TO MATCH ADJACENT CLG MAX 2" ALIGN 1" MIN
