An underground PVC supply manifold connects to remote control valve assemblies and feeds a series of dripline laterals through PVC tees with half-inch female pipe thread outlets. Dripline MPT adapters and tee fittings link the PVC piping to blank polyethylene tubing and dripline laterals buried below the finish grade at depths specified by project requirements.

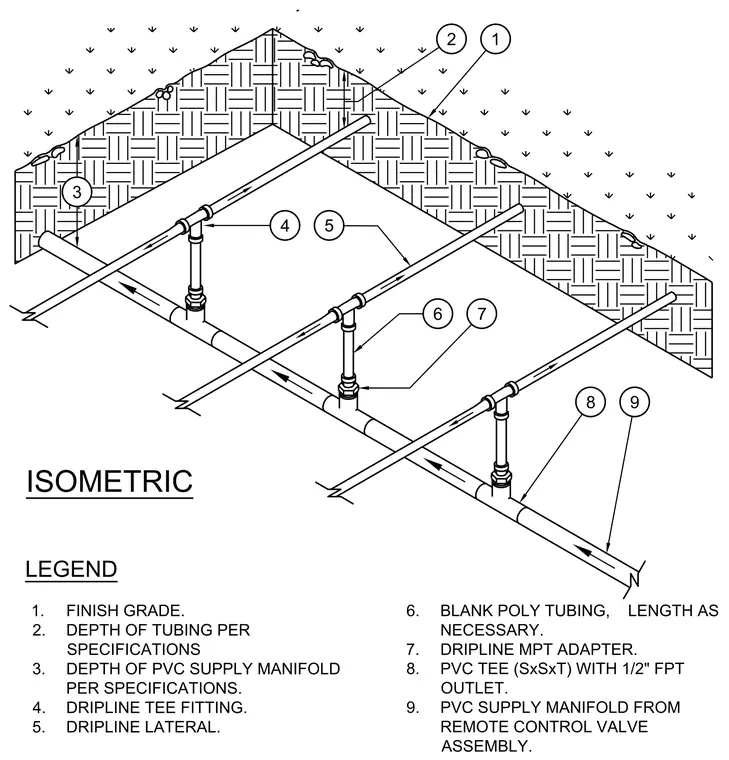

ISOMETRIC 3 2 1 4 5 6 7 8 9 1. FINISH GRADE. 2. DEPTH OF TUBING PER SPECIFICATIONS 3. DEPTH OF PVC SUPPLY MANIFOLD PER SPECIFICATIONS. 4. DRIPLINE TEE FITTING. 5. DRIPLINE LATERAL. 6. BLANK POLY TUBING, LENGTH AS NECESSARY. 7. DRIPLINE MPT ADAPTER. 8. PVC TEE (SxSxT) WITH 1/2" FPT OUTLET. 9. PVC SUPPLY MANIFOLD FROM REMOTE CONTROL VALVE ASSEMBLY. LEGEND
