Metal strap blocking is installed between studs and attached with two screws to each stud, with splices located at blocking. Intermittent blocking is placed at the ends of the wall and at eight feet on center, using the same gauge as the studs. Where gypsum board occurs on only one side, a strap is provided at the side without gypsum board, and where gypsum board occurs on both sides, straps are provided on both sides of the stud. Lateral bridging is spaced at maximum intervals of two feet six inches and three feet six inches vertically.

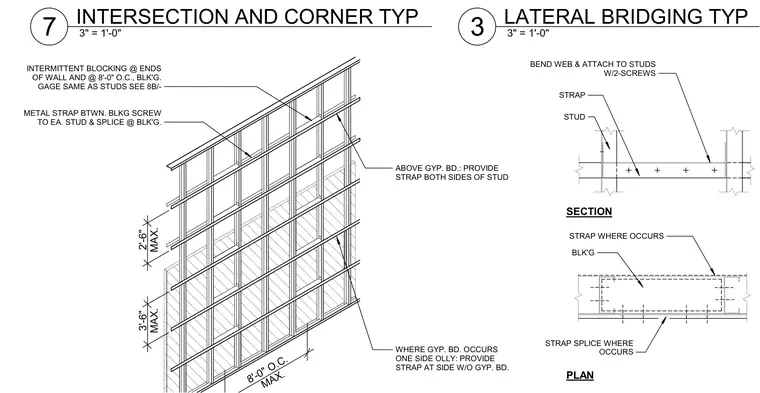

METAL STRAP BTWN. BLKG SCREW TO EA. STUD & SPLICE @ BLK'G. INTERMITTENT BLOCKING @ ENDS OF WALL AND @ 8'-0" O.C., BLK'G. GAGE SAME AS STUDS SEE 8B/- ABOVE GYP. BD.: PROVIDE STRAP BOTH SIDES OF STUD WHERE GYP. BD. OCCURS ONE SIDE OLLY: PROVIDE STRAP AT SIDE W/O GYP. BD. 2'-6" MAX. 3'-6" MAX. 8'-0" O.C. MAX. SECTION PLAN BEND WEB & ATTACH TO STUDS W/2-SCREWS STRAP STUD STRAP WHERE OCCURS BLK'G STRAP SPLICE WHERE OCCURS 3" = 1'-0" 3 LATERAL BRIDGING TYP 3" = 1'-0" 7 INTERSECTION AND CORNER TYP
