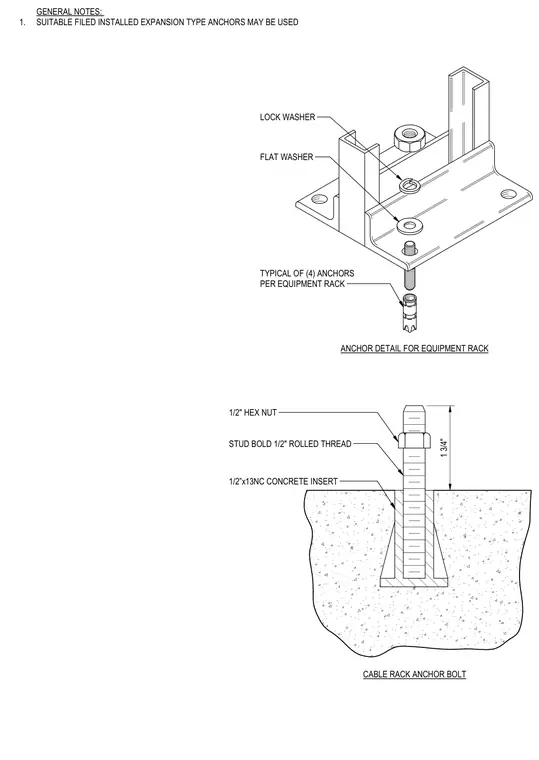

An equipment rack is anchored to a concrete substrate using a one-half-inch concrete insert embedded in the concrete. A one-half-inch-by-thirteen-UNC stud bolt with rolled threads fastens into the insert. A flat washer and lock washer sit beneath a one-half-inch hex nut to secure the equipment rack base plate. Suitable field-installed expansion-type anchors may be used as an alternative.
CABLE RACK ANCHOR BOLT 1/2" HEX NUT STUD BOLD 1/2" ROLLED THREAD 1/2”x13NC CONCRETE INSERT 1 3/4" ANCHOR DETAIL FOR EQUIPMENT RACK TYPICAL OF (4) ANCHORS PER EQUIPMENT RACK FLAT WASHER LOCK WASHER GENERAL NOTES: 1. SUITABLE FILED INSTALLED EXPANSION TYPE ANCHORS MAY BE USED
