Door Access Control Wiring and Security Device Layout

Elements

About this detail

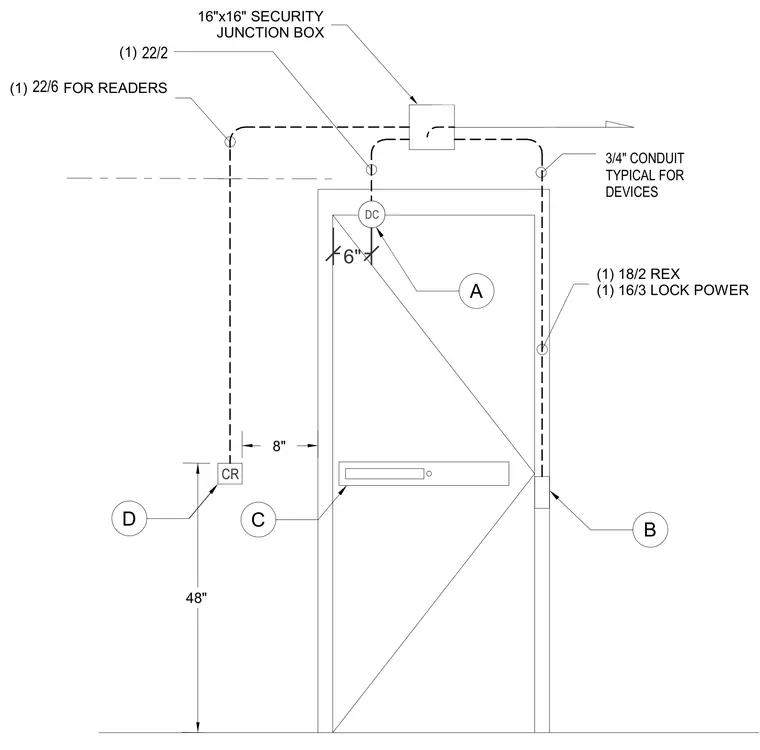

A 16-inch by 16-inch security junction box connects to a door equipped with an exit bar, card reader, request-to-exit device, and lock power. Three-quarter inch conduit runs typical for devices, housing one twenty-gauge two-conductor wire, one twenty-two gauge six-conductor wire for readers, one eighteen-gauge two-conductor wire for the request-to-exit, and one sixteen-gauge three-conductor wire for lock power. The card reader is positioned forty-eight inches above the finished floor and eight inches from the door frame.
