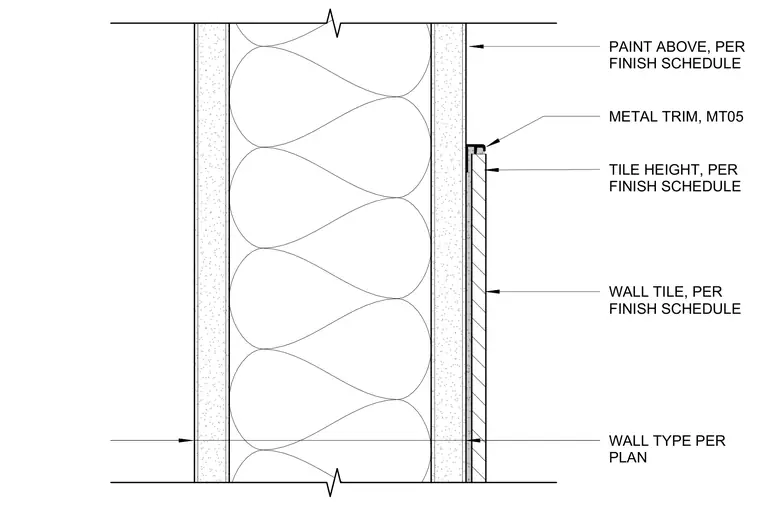

Wall tile terminates at a specified height with metal trim MT05 capping the upper edge above the tiled surface. The wall assembly consists of a framed partition per plan with wall tile adhered to the finish face up to the trim transition. Paint finishes the wall surface above the metal trim per the finish schedule.
WALL TYPE PER PLAN METAL TRIM, MT05 WALL TILE, PER FINISH SCHEDULE TILE HEIGHT, PER FINISH SCHEDULE PAINT ABOVE, PER FINISH SCHEDULE
