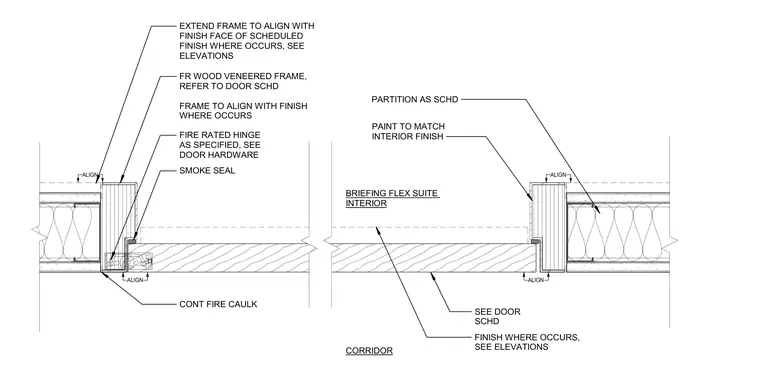

The wood veneered frame is aligned with the finish face of the scheduled finish and extended as shown on elevations. A fire-rated hinge and smoke seal are installed per the door hardware specification. Continuous fire caulk is applied at the frame perimeter. The partition construction matches the door schedule, and finishes are painted to match the interior.
SEE DOOR SCHD PARTITION AS SCHD CORRIDOR FR WOOD VENEERED FRAME, REFER TO DOOR SCHD FRAME TO ALIGN WITH FINISH WHERE OCCURS CONT FIRE CAULK FIRE RATED HINGE AS SPECIFIED, SEE DOOR HARDWARE SMOKE SEAL BRIEFING FLEX SUITE INTERIOR ALIGN ALIGN ALIGN FINISH WHERE OCCURS, SEE ELEVATIONS EXTEND FRAME TO ALIGN WITH FINISH FACE OF SCHEDULED FINISH WHERE OCCURS, SEE ELEVATIONS PAINT TO MATCH INTERIOR FINISH ALIGN
