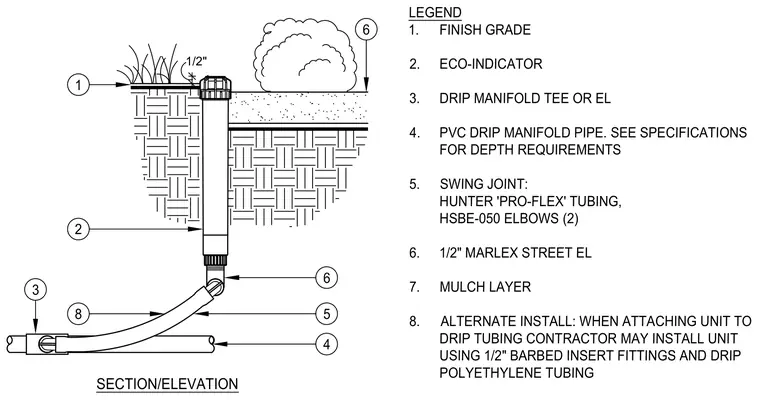

An irrigation head installation connects to a PVC drip manifold pipe. The assembly features a swing joint constructed from Hunter Pro-Flex tubing and two HSBE-050 elbows, attached via a one-half-inch Marlex street elbow. An alternate installation allows the contractor to attach the unit to the polyethylene drip tubing using one-half-inch barbed insert fittings. The head is set flush relative to the mulch layer and finish grade.
LEGEND 1. FINISH GRADE 2. ECO-INDICATOR 3. DRIP MANIFOLD TEE OR EL 4. PVC DRIP MANIFOLD PIPE. SEE SPECIFICATIONS FOR DEPTH REQUIREMENTS 5. SWING JOINT: HUNTER 'PRO-FLEX' TUBING, HSBE-050 ELBOWS (2) 6. 1/2" MARLEX STREET EL 7. MULCH LAYER 8. ALTERNATE INSTALL: WHEN ATTACHING UNIT TO DRIP TUBING CONTRACTOR MAY INSTALL UNIT USING 1/2" BARBED INSERT FITTINGS AND DRIP POLYETHYLENE TUBING SECTION/ELEVATION 6 1/2" 1 2 3 4 5 6 8
