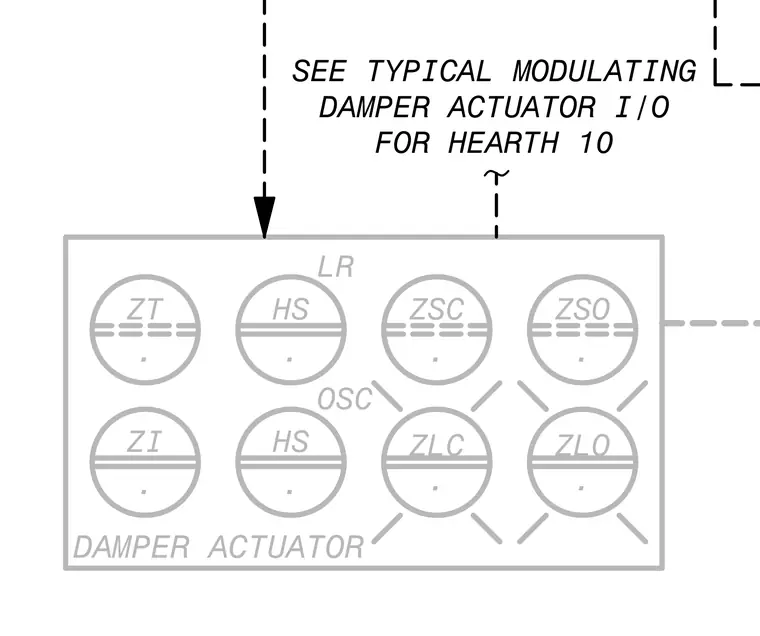

A damper actuator control diagram shows input and output points for hearth 10 with designated terminal connections. The schematic includes labeled points for actuator travel and status indications such as ZT, ZI, HS, ZSC, ZSO, ZLC, and ZLO. Connections reference the typical modulating damper actuator I/O for hearth 10.
ZT . ZI . DAMPER ACTUATOR ZSC . ZSO . . ZLC . ZLO HS . LR HS . OSC SEE TYPICAL MODULATING DAMPER ACTUATOR I/O FOR HEARTH 10
