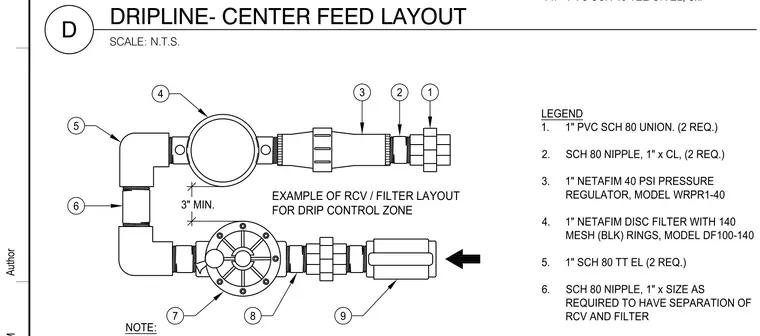

Dripline Center Feed Layout for Drip Control Zone

About this detail

A receiver, filter, and pressure regulator assembly layout for a drip control zone incorporates one-inch PVC schedule 80 unions, schedule 80 nipples, a one-inch 40 PSI pressure regulator, and a one-inch disc filter with 140 mesh rings. Schedule 80 threaded elbows and sized nipples provide the necessary three-inch minimum separation between components.
