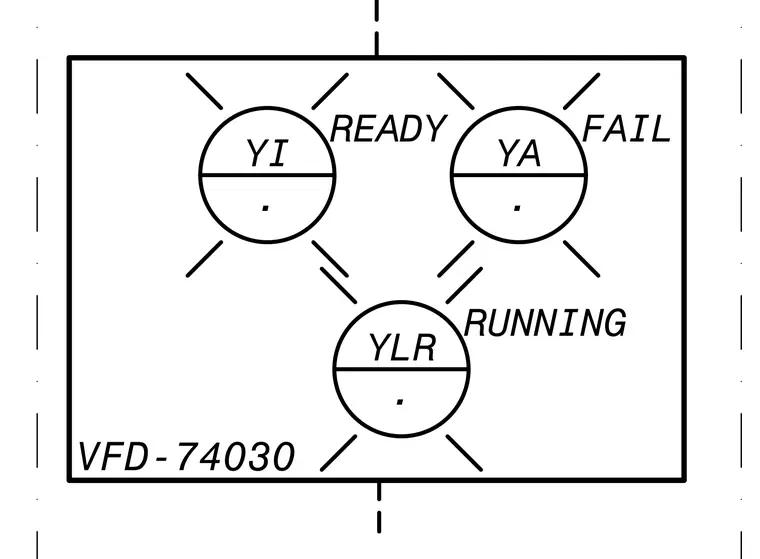

The diagram displays status indicator points for a variable frequency drive designated as VFD-74030. Three circular status symbols represent operating conditions labeled as ready with indicator code YI, fail with indicator code YA, and running with indicator code YLR. Lines indicate signal connections associated with each operational state.
VFD-74030 . YI READY . YA FAIL . YLR RUNNING
