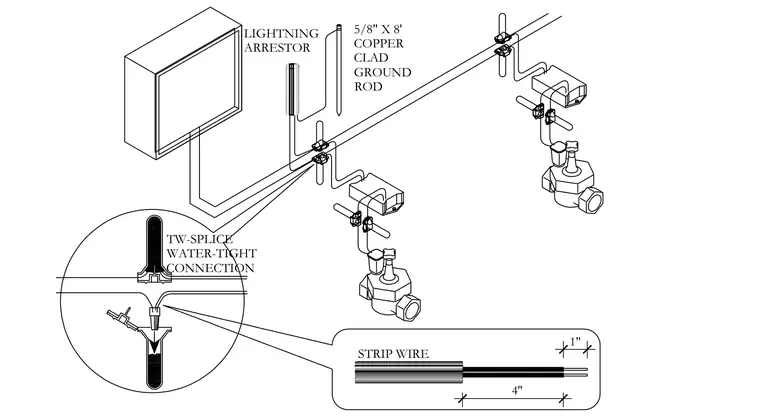

A water-tight two-wire splice connection links electrical conductors using a TW-splice housing, paired with a lightning arrestor and a five-eighths-inch by eight-foot copper-clad ground rod. Wires are stripped four inches at the ends with a one-inch spacing dimension indicated.
LIGHTNING ARRESTOR 5/8" X 8' COPPER CLAD GROUND ROD TW-SPLICE WATER-TIGHT CONNECTION STRIP WIRE 4" 1"
