A demountable partition system connects to a gypsum header above, centered on the header with equal spacing dimensions. Metal edge trim aligns with the partition corner at the intersection with the wall. An acoustic panel is applied to the wall surface above the partition junction. A partition as specified forms the adjacent wall construction.

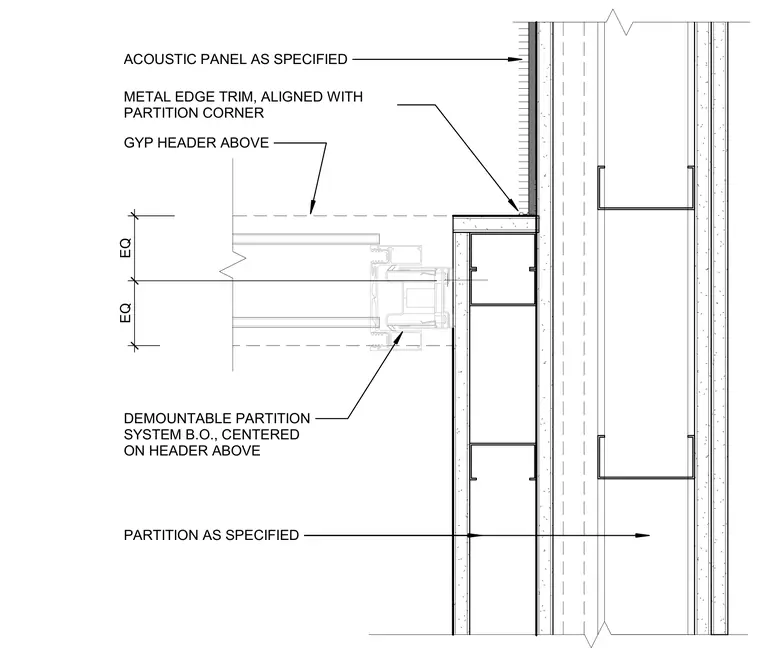

ACOUSTIC PANEL AS SPECIFIED METAL EDGE TRIM, ALIGNED WITH PARTITION CORNER GYP HEADER ABOVE DEMOUNTABLE PARTITION SYSTEM B.O., CENTERED ON HEADER ABOVE PARTITION AS SPECIFIED EQ EQ
