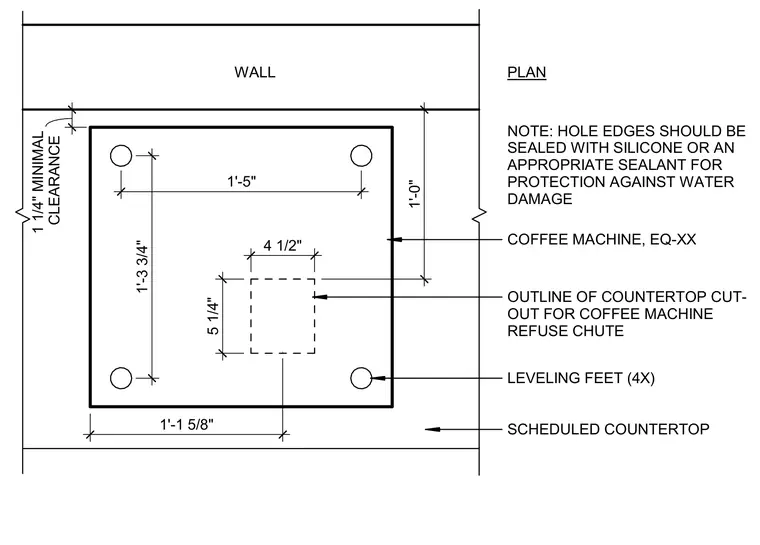

This plan detail shows the layout for a scheduled coffee machine on a countertop with four leveling feet and a refuse chute cutout. The machine outline measures 1 foot 3 and three-quarter inches by 1 foot 5 inches overall, with a minimum 1 and one-quarter inch clearance maintained from the adjacent wall. The dashed refuse chute cutout measures 5 and one-quarter inches by 4 and one-half inches, positioned 1 foot 1 and five-eighths inches from the side edge. Hole edges require sealing with silicone or an appropriate sealant to protect against water damage.
PLAN WALL CLEARANCE 1 1/4" MINIMAL 1'-0" 4 1/2" 5 1/4" 1'-1 5/8" OUTLINE OF COUNTERTOP CUT- OUT FOR COFFEE MACHINE REFUSE CHUTE LEVELING FEET (4X) SCHEDULED COUNTERTOP NOTE: HOLE EDGES SHOULD BE SEALED WITH SILICONE OR AN APPROPRIATE SEALANT FOR PROTECTION AGAINST WATER DAMAGE 1'-3 3/4" 1'-5" COFFEE MACHINE, EQ-XX
