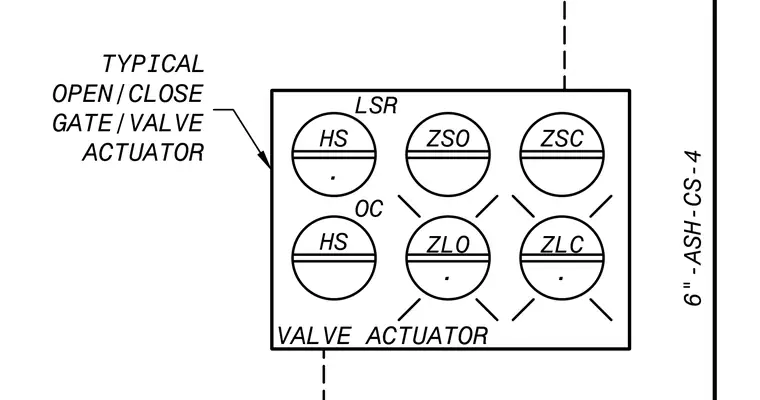

A typical open/close gate valve actuator control assembly connects to a 6-inch carbon steel process line designated as 6"-ASH-CS-4. The schematic arrangement incorporates hand switches, limit switches, and position feedback indicators including open and close status points. The unit integrates auxiliary control connections for remote operation and status verification across the mechanical piping network.
TYPICAL OPEN/CLOSE GATE/VALVE ACTUATOR HS OC VALVE ACTUATOR ZSO ZSC HS . LSR . ZLO . ZLC 6"-ASH-CS-4
