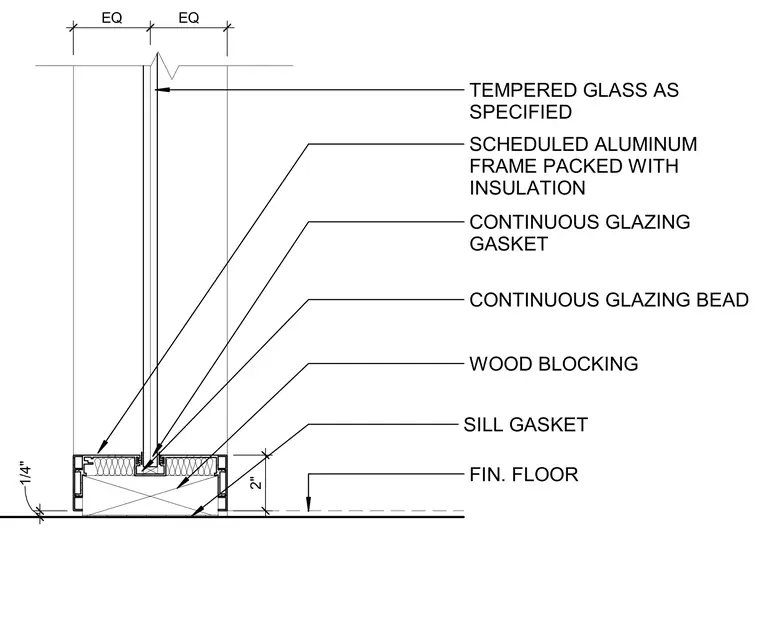

Tempered glass is secured within a scheduled aluminum frame packed with insulation and anchored over wood blocking. Continuous glazing gaskets and beads seal the glass assembly at the sill. A sill gasket sits beneath the frame, which rests above the finished floor level.
FIN. FLOOR 1/4" SILL GASKET CONTINUOUS GLAZING GASKET SCHEDULED ALUMINUM FRAME PACKED WITH INSULATION WOOD BLOCKING TEMPERED GLASS AS SPECIFIED CONTINUOUS GLAZING BEAD 2" EQ EQ
