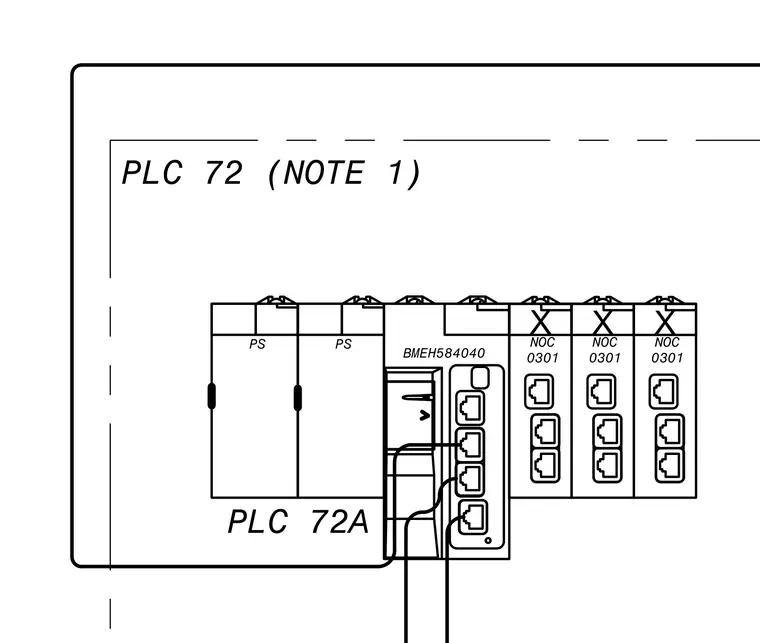

Programmable logic controller unit labeled PLC 72 with note 1, incorporating a power supply designated PS, a processor module BMEH584040, and three communication modules labeled NOC 0301 with network ports. Cabling routes from the front ports of the central processor and communication modules downward into the enclosure.
