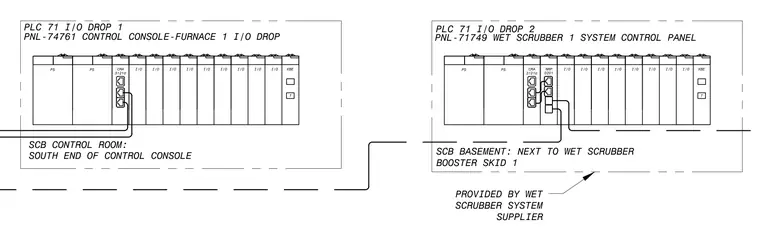

Programmable logic controller drops include control console furnace one I/O drop located at the south end of the control console in the SCB control room and the wet scrubber one system control panel located in the SCB basement next to the wet scrubber booster skid one. Each panel assembly houses power supply modules, input and output modules, CRA 31210 units, NRP 0201 network modules, and XBE communication modules. Cabling connects to the modules from external control points. Equipment is provided by the wet scrubber system supplier.
PLC 71 I/O DROP 1 SCB CONTROL ROOM: SOUTH END OF CONTROL CONSOLE PLC 71 I/O DROP 2 SCB BASEMENT: NEXT TO WET SCRUBBER BOOSTER SKID 1 PNL-74761 CONTROL CONSOLE-FURNACE 1 I/O DROP PNL-71749 WET SCRUBBER 1 SYSTEM CONTROL PANEL I/O I/O I/O I/O CRA PS PS T XBE 31210 I/O I/O I/O I/O I/O I/O I/O I/O CRA PS PS T XBE 31210 NRP 0201 I/O I/O I/O I/O PROVIDED BY WET SCRUBBER SYSTEM SUPPLIER I/O
