A three-quarter inch plywood veneer panel is mounted to a partition assembly using Z-clips with wood shims as required. One-by-one wood battens are positioned beyond the panel. A two-and-a-half-inch wood ceiling meets the wall assembly with a half-inch vertical clearance.

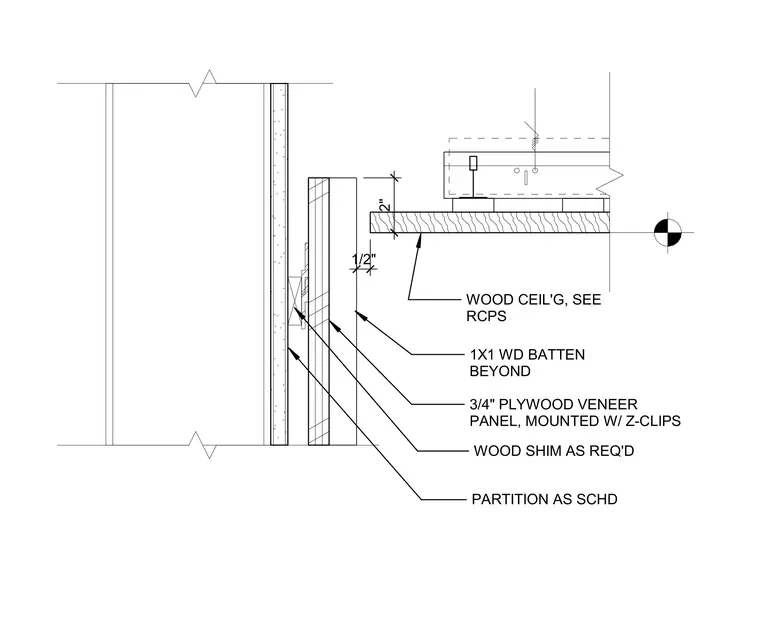

PARTITION AS SCHD 1X1 WD BATTEN BEYOND 3/4" PLYWOOD VENEER PANEL, MOUNTED W/ Z-CLIPS WOOD SHIM AS REQ'D 2" 1/2" WOOD CEIL'G, SEE RCPS
