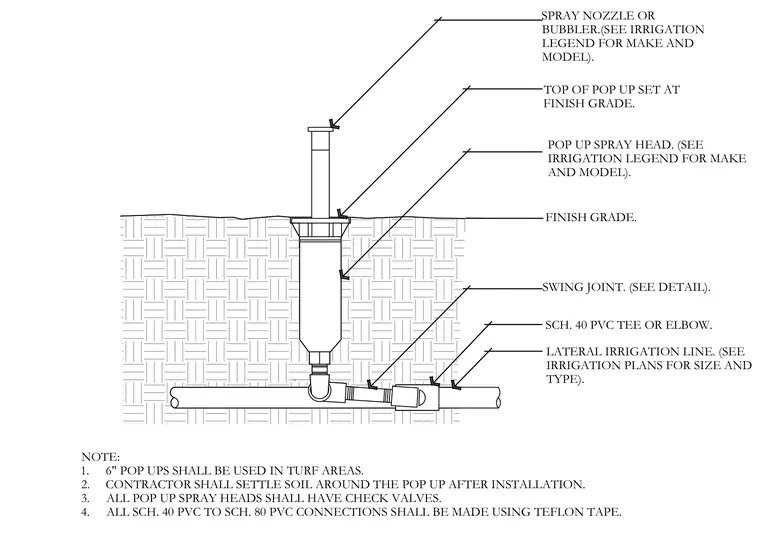

A pop-up spray head or bubbler is mounted flush with the finish grade atop a Schedule 40 PVC body. The assembly connects to a lateral irrigation line via a swing joint and a Schedule 40 PVC tee or elbow. Six-inch pop-ups are specified for turf areas, and all spray heads must include check valves. Schedule 40 to Schedule 80 PVC threaded connections require teflon tape, and soil must be properly settled around the head after installation.
SCH. 40 PVC TEE OR ELBOW. NOTE: 1. 6" POP UPS SHALL BE USED IN TURF AREAS. 2. CONTRACTOR SHALL SETTLE SOIL AROUND THE POP UP AFTER INSTALLATION. 3. ALL POP UP SPRAY HEADS SHALL HAVE CHECK VALVES. 4. ALL SCH. 40 PVC TO SCH. 80 PVC CONNECTIONS SHALL BE MADE USING TEFLON TAPE. SPRAY NOZZLE OR BUBBLER.(SEE IRRIGATION LEGEND FOR MAKE AND MODEL). TOP OF POP UP SET AT FINISH GRADE. POP UP SPRAY HEAD. (SEE IRRIGATION LEGEND FOR MAKE AND MODEL). LATERAL IRRIGATION LINE. (SEE IRRIGATION PLANS FOR SIZE AND TYPE). SWING JOINT. (SEE DETAIL). FINISH GRADE. 2 3 D
