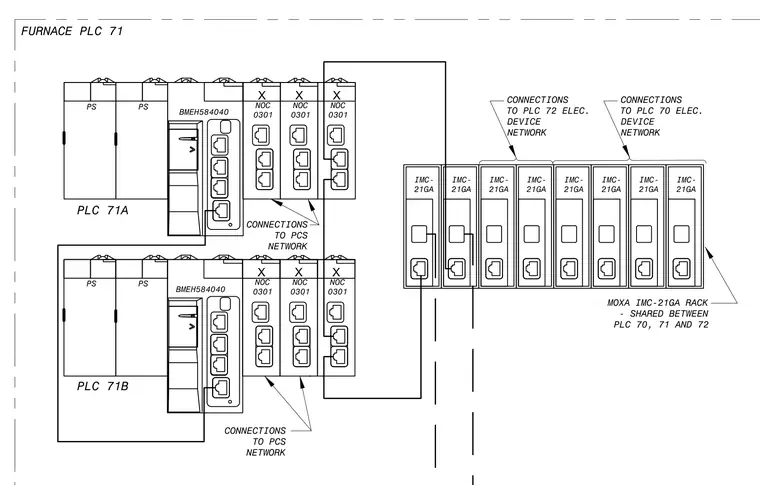

Programmable logic controller units PLC 71A and PLC 71B connect to the PCS network via BMEH584040 modules and NOC 0301 communication modules. A shared Moxa IMC-21GA rack interfaces with both PLC 70 and PLC 72 device networks. Power supply units marked PS provide power across the controller racks.
PLC 71B X X X BMEH584040 X X X PLC 71A FURNACE PLC 71 NOC 0301 NOC 0301 NOC 0301 NOC 0301 NOC 0301 NOC 0301 CONNECTIONS TO PCS NETWORK CONNECTIONS TO PCS NETWORK PS PS PS PS BMEH584040 IMC- 21GA IMC- 21GA IMC- 21GA IMC- 21GA IMC- 21GA IMC- 21GA IMC- 21GA IMC- 21GA MOXA IMC-21GA RACK - SHARED BETWEEN PLC 70, 71 AND 72 CONNECTIONS TO PLC 70 ELEC. DEVICE NETWORK CONNECTIONS TO PLC 72 ELEC. DEVICE NETWORK
