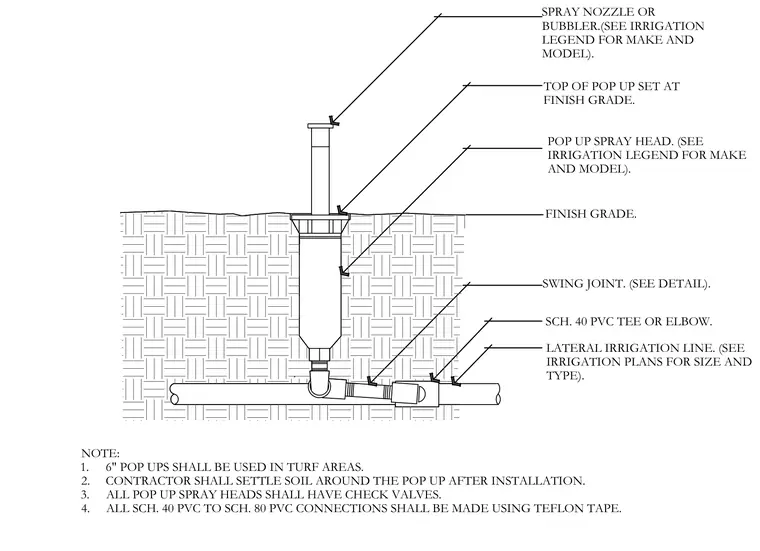

A pop-up spray head or bubbler is mounted flush with the finish grade atop a Schedule 40 PVC tee or elbow. A swing joint connects the body to the lateral irrigation line. All pop-up spray heads are specified with check valves, and six-inch units are used in turf areas. Threaded connections between Schedule 40 and Schedule 80 PVC are sealed with teflon tape, and soil is compacted around the fixture after installation.
SCH. 40 PVC TEE OR ELBOW. NOTE: 1. 6" POP UPS SHALL BE USED IN TURF AREAS. 2. CONTRACTOR SHALL SETTLE SOIL AROUND THE POP UP AFTER INSTALLATION. 3. ALL POP UP SPRAY HEADS SHALL HAVE CHECK VALVES. 4. ALL SCH. 40 PVC TO SCH. 80 PVC CONNECTIONS SHALL BE MADE USING TEFLON TAPE. SPRAY NOZZLE OR BUBBLER.(SEE IRRIGATION LEGEND FOR MAKE AND MODEL). TOP OF POP UP SET AT FINISH GRADE. POP UP SPRAY HEAD. (SEE IRRIGATION LEGEND FOR MAKE AND MODEL). LATERAL IRRIGATION LINE. (SEE IRRIGATION PLANS FOR SIZE AND TYPE). SWING JOINT. (SEE DETAIL). FINISH GRADE.
