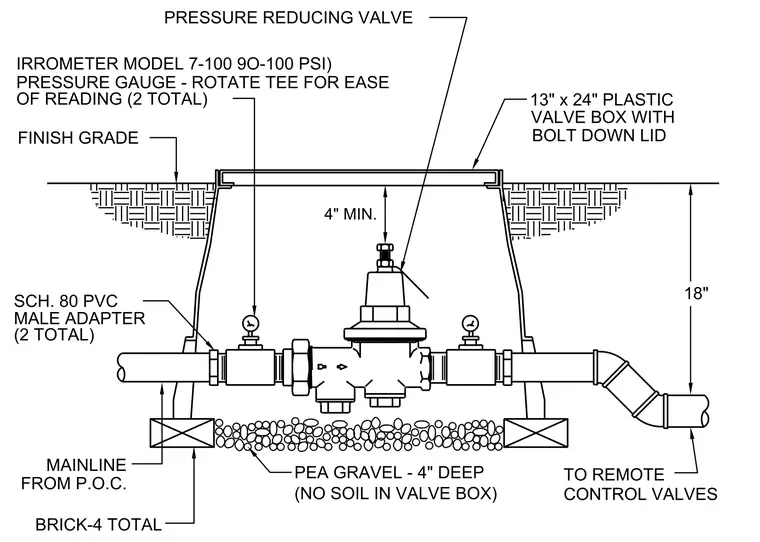

An underground pressure reducing valve assembly housed within a 13-inch by 24-inch plastic valve box with a bolt-down lid set flush to finish grade. The mainline from the point of connection transitions through schedule 80 PVC male adapters and connects to two pressure gauges rated for 90 to 100 PSI. The entire piping assembly is supported on four bricks resting over a four-inch deep bed of pea gravel, ensuring no soil enters the valve box. Downstream piping routes through schedule 80 PVC elbows toward the remote control valves.
CONTROL VALVES FROM P.O.C. BRICK-4 TOTAL BOLT DOWN LID 4" MIN. IRROMETER MODEL 7-100 9O-100 PSI) PRESSURE GAUGE - ROTATE TEE FOR EASE PEA GRAVEL - 4" DEEP (NO SOIL IN VALVE BOX) PRESSURE REDUCING VALVE (2 TOTAL) MAINLINE MALE ADAPTER OF READING (2 TOTAL) FINISH GRADE SCH. 80 PVC TO REMOTE VALVE BOX WITH 13" x 24" PLASTIC 18"
