Staff Lounge Island Sink Countertop Detail

Elements

About this detail

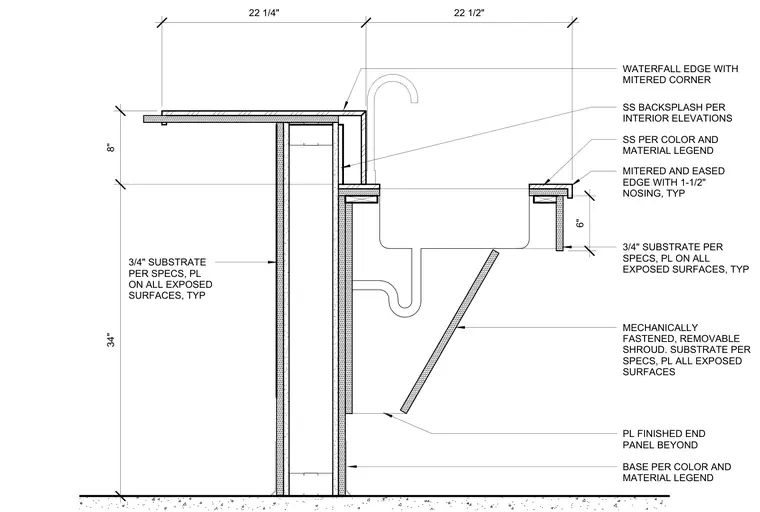

The island sink counter features a three-quarter-inch substrate per specifications with plastic laminate on all exposed surfaces. The countertop incorporates a waterfall edge with a mitered corner and a stainless steel backsplash. The sink edge includes a mitered and eased edge with a typical one-and-a-half-inch nosing. A mechanically fastened, removable shroud covers the plumbing below, while a finished end panel sits beyond.
