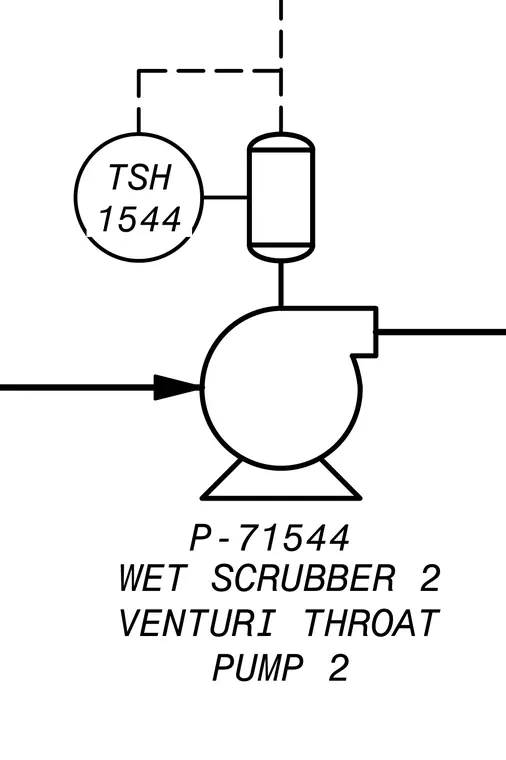

Process and instrumentation diagram showing pump P-71544 serving wet scrubber 2 venturi throat along with associated instrumentation tag TSH 1544. Signal lines connect the temperature switch high to the process loop.
