Landscape · I-AGV2P

Flow Sensor Wire Pull Box

Materials

Steel Brick

Elements

Drainage

Connections

Bolted Connection

About this detail

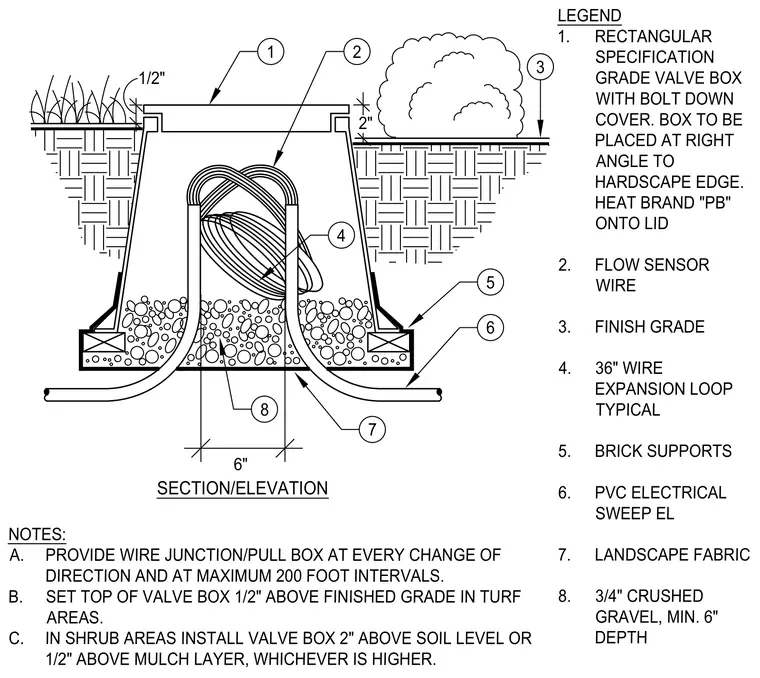

A rectangular specification-grade valve box with a bolt-down cover sits atop a bed of three-quarter-inch crushed gravel with a minimum depth of six inches. The box rests on brick supports over landscape fabric and is fed by PVC electrical sweep elbows entering from below. Inside the enclosure, the flow sensor wire forms a thirty-six-inch wire expansion loop. In turf areas, the top of the valve box is set one-half inch above finished grade, while in shrub areas it is installed two inches above soil level or one-half inch above the mulch layer. The box is placed at a right angle to the hardscape edge, and the letters "PB" are heat-branded onto the lid.
