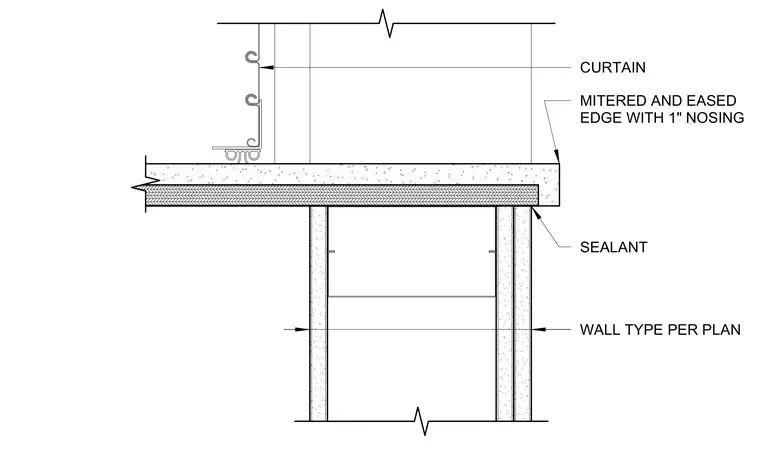

A coiling door curtain rests above a sill assembly featuring a mitered and eased edge with a one-inch nosing. Sealant is applied at the junction between the sill and the wall type specified per plan.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
