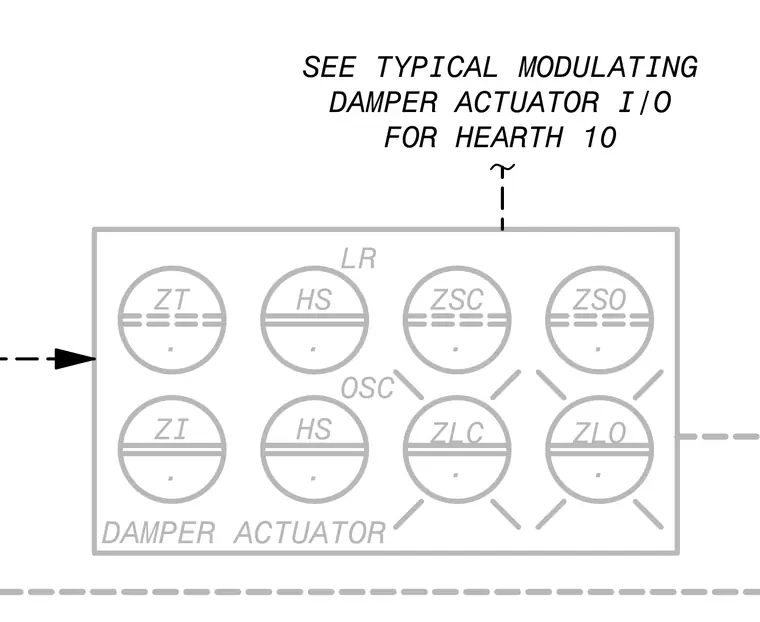

A modulating damper actuator layout shows control and signal points including ZT, ZI, HS, ZSC, ZSO, ZLC, and ZLO connections. A dashed leader references the typical modulating damper actuator input and output configuration for hearth 10.
ZT . ZI . DAMPER ACTUATOR ZSC . ZSO . . ZLC . ZLO HS . LR HS . OSC SEE TYPICAL MODULATING DAMPER ACTUATOR I/O FOR HEARTH 10
