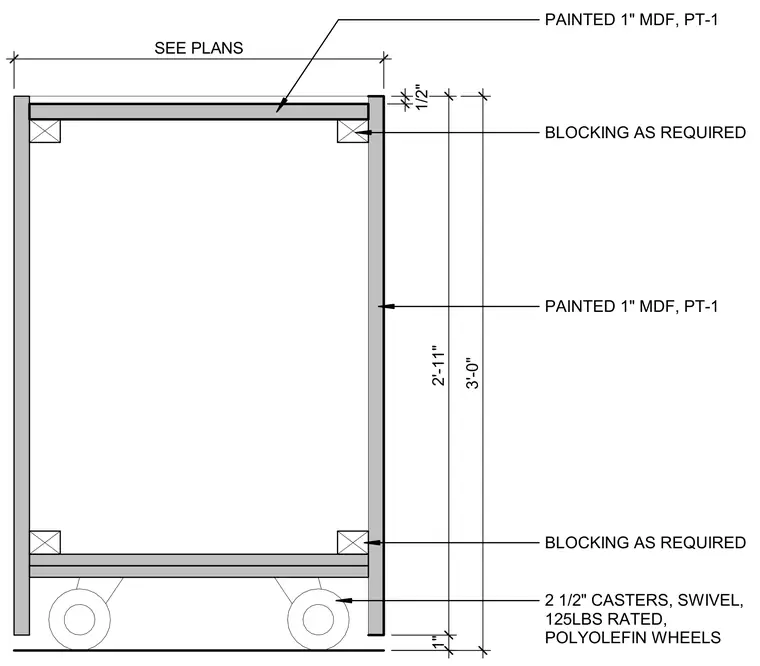

This interior millwork detail shows a mobile servery cart fabricated from painted one-inch medium-density fiberboard panels designated as PT-1. Internal wood blocking is provided as required at structural corners to reinforce the panel joints. The assembly is supported at the base by two-and-one-half-inch swivel casters rated for 125 pounds each, featuring polyolefin wheels.
2 1/2" CASTERS, SWIVEL, 125LBS RATED, POLYOLEFIN WHEELS PAINTED 1" MDF, PT-1 PAINTED 1" MDF, PT-1 1" 2'-11" 3'-0" SEE PLANS 1/2" BLOCKING AS REQUIRED BLOCKING AS REQUIRED
