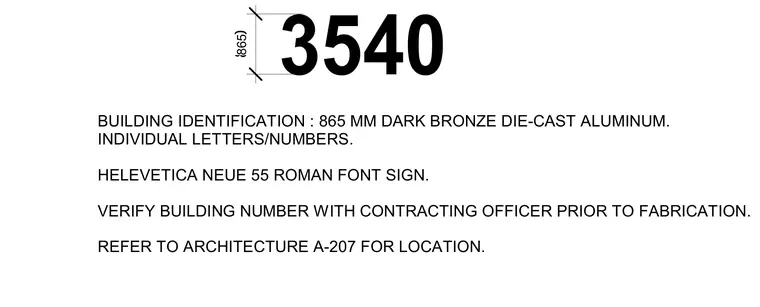

Building identification is established using eight hundred sixty-five millimeter dark bronze die-cast aluminum individual letters and numbers rendered in Helvetica Neue 55 Roman font. The building number must be verified with the contracting officer prior to fabrication, and location is coordinated per architectural sheet A-207.
BUILDING IDENTIFICATION : 865 MM DARK BRONZE DIE-CAST ALUMINUM. INDIVIDUAL LETTERS/NUMBERS. HELEVETICA NEUE 55 ROMAN FONT SIGN. VERIFY BUILDING NUMBER WITH CONTRACTING OFFICER PRIOR TO FABRICATION. REFER TO ARCHITECTURE A-207 FOR LOCATION. 3540 800 865
