A removable wood fascia panel connects to a 19-millimeter wood mounting strip using a Z-clip fastener and concealed ADA-compliant bracket. Panel screws and support screws secure the hardware components to both the panel and the mounting substrate.

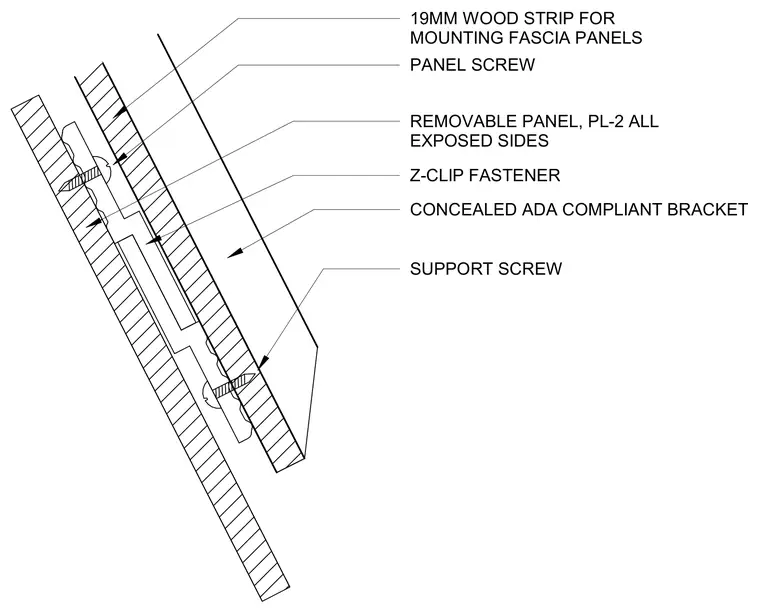

REMOVABLE PANEL, PL-2 ALL EXPOSED SIDES PANEL SCREW SUPPORT SCREW CONCEALED ADA COMPLIANT BRACKET Z-CLIP FASTENER 19MM WOOD STRIP FOR MOUNTING FASCIA PANELS
