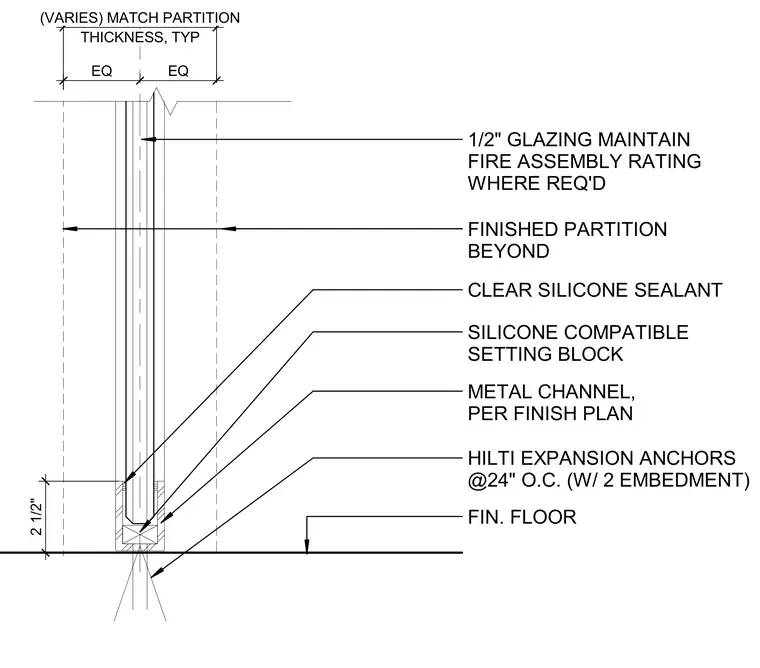

The assembly anchors a metal channel to the finished floor using Hilti expansion anchors spaced at twenty-four inches on center with two inches of embedment. A silicone-compatible setting block rests inside the channel to support the one-half-inch glazing panel, which maintains fire assembly ratings where required. Clear silicone sealant is applied at the glazing joints. The finished partition thickness varies and is coordinated per the finish plan.
HILTI EXPANSION ANCHORS @24" O.C. (W/ 2 EMBEDMENT) SILICONE COMPATIBLE SETTING BLOCK FINISHED PARTITION BEYOND THICKNESS, TYP (VARIES) MATCH PARTITION 1/2" GLAZING MAINTAIN FIRE ASSEMBLY RATING WHERE REQ'D METAL CHANNEL, PER FINISH PLAN FIN. FLOOR 2 1/2" CLEAR SILICONE SEALANT EQ EQ
