Fertigation Injector Assembly

Materials

Brick

Elements

Connections / Plates

Connections

Bolted Connection

About this detail

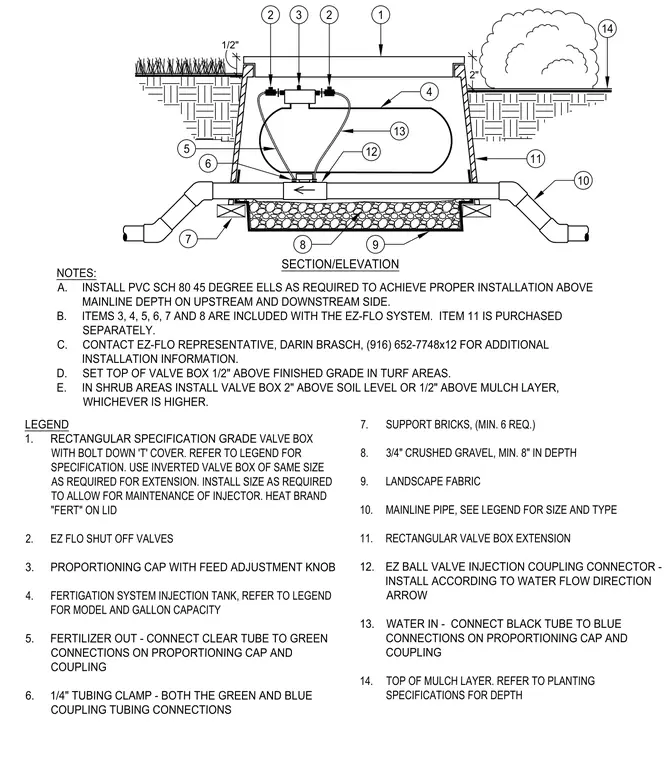

A fertigation injector system is housed within a rectangular specification-grade valve box with a bolt-down cover. The injection tank rests on support bricks over a minimum eight-inch layer of three-quarter-inch crushed gravel wrapped in landscape fabric. The mainline pipe connects via PVC schedule eighty forty-five-degree elbows, incorporating shut-off valves, a proportioning cap with a feed adjustment knob, and a ball valve injection coupling connector. Clear and black tubing connect the tank to the coupling using quarter-inch tubing clamps, with the assembly positioned at specified heights above finished grade or mulch levels.
