Wet Scrubber Drain Pump Piping and Instrumentation Diagram

Elements

About this detail

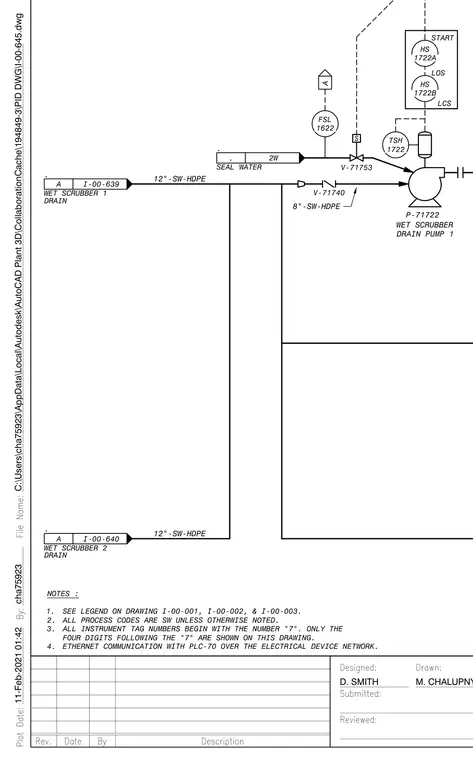

Wet scrubber 1 drain and wet scrubber 2 drain lines connect via twelve-inch high-density polyethylene pipe to a wet scrubber drain pump. The suction line incorporates an eight-inch high-density polyethylene pipe segment, a valve, and a seal water connection with a flow switch. Instrumentation tags including a temperature switch, level switch, and valve hand switches govern pump operation. Ethernet communication links the instrumentation loop to the programmable logic controller.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
