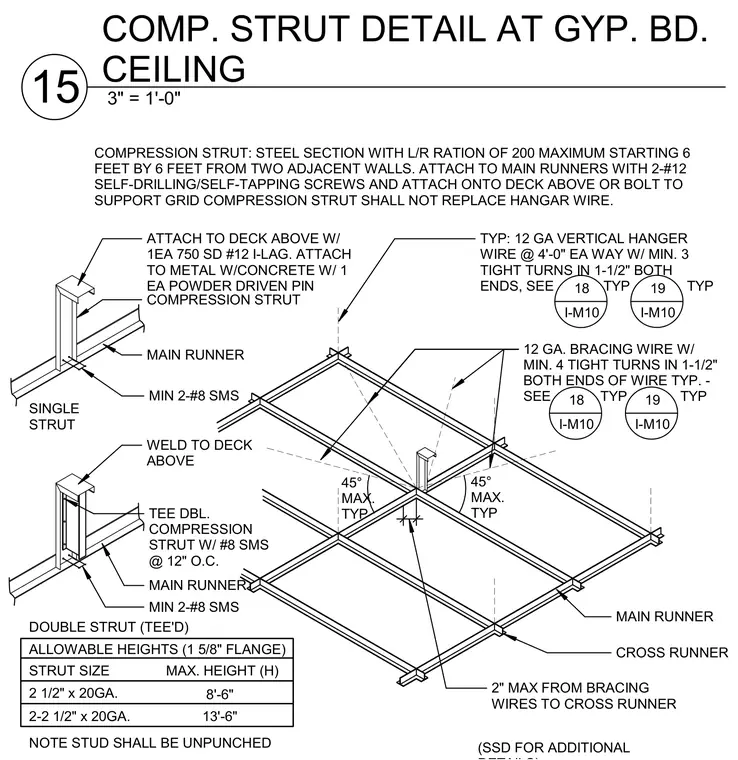

Seismic and structural bracing requirements for a suspended ceiling grid system featuring compression struts and diagonal bracing wires. The compression strut consists of an unpunched steel section attached to the main runners using two number eight sheet metal screws, and is secured to the deck above using either one I-lag screw or a powder-driven pin. Vertical hanger wires of twelve gauge steel are spaced at four feet each way with a minimum of three tight turns in one and one-half inches at both ends. Bracing wires are installed at a maximum forty-five degree angle, positioned within two inches of the cross runner connection, with four tight turns at each end. A schedule of allowable heights is provided for single and double tee'd compression strut sizes with one and five-eighths inch flanges.
COMPRESSION STRUT: STEEL SECTION WITH L/R RATION OF 200 MAXIMUM STARTING 6 FEET BY 6 FEET FROM TWO ADJACENT WALLS. ATTACH TO MAIN RUNNERS WITH 2-#12 SELF-DRILLING/SELF-TAPPING SCREWS AND ATTACH ONTO DECK ABOVE OR BOLT TO SUPPORT GRID COMPRESSION STRUT SHALL NOT REPLACE HANGAR WIRE. ATTACH TO DECK ABOVE W/ 1EA 750 SD #12 I-LAG. ATTACH TO METAL W/CONCRETE W/ 1 EA POWDER DRIVEN PIN COMPRESSION STRUT MAIN RUNNER MIN 2-#8 SMS WELD TO DECK ABOVE SINGLE STRUT TEE DBL. COMPRESSION STRUT W/ #8 SMS @ 12" O.C. MAIN RUNNER MIN 2-#8 SMS TYP: 12 GA VERTICAL HANGER WIRE @ 4'-0" EA WAY W/ MIN. 3 TIGHT TURNS IN 1-1/2" BOTH ENDS, SEE TYP TYP 12 GA. BRACING WIRE W/ MIN. 4 TIGHT TURNS IN 1-1/2" BOTH ENDS OF WIRE TYP. - SEE TYP TYP 45° MAX. TYP 45° MAX. TYP 2" MAX FROM BRACING WIRES TO CROSS RUNNER CROSS RUNNER MAIN RUNNER (SSD FOR ADDITIONAL DOUBLE STRUT (TEE'D) ALLOWABLE HEIGHTS (1 5/8" FLANGE) STRUT SIZE MAX. HEIGHT (H) 8'-6" 13'-6" 2 1/2" x 20GA. 2-2 1/2" x 20GA. NOTE STUD SHALL BE UNPUNCHED 18 I-M10 19 I-M10 18 I-M10 19 I-M10 3" = 1'-0" 15 COMP. STRUT DETAIL AT GYP. BD. CEILING
