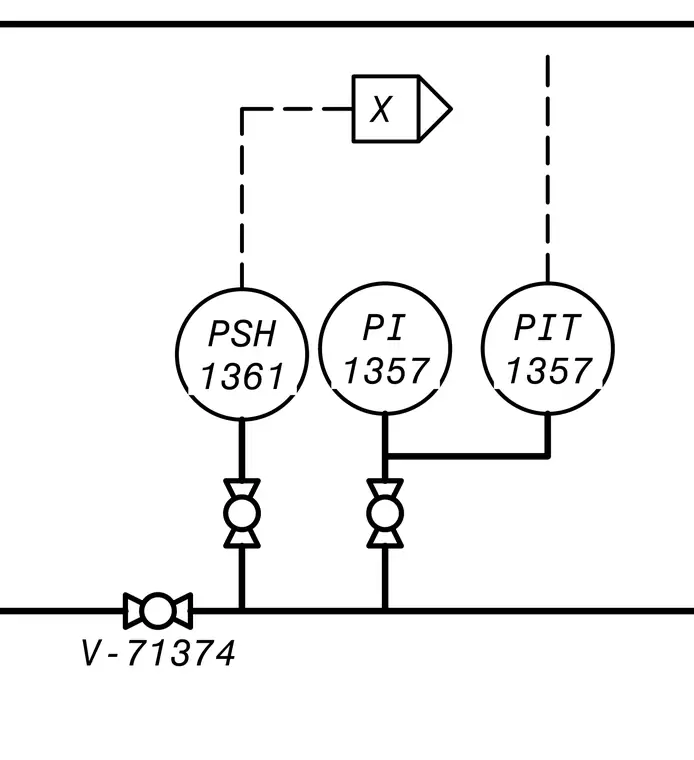

A main process line containing valve V-71374 branches to connect multiple instrumentation devices. Pressure switch PSH 1361 ties into the main line through an isolation valve with a dashed signal or capillary line routed to a tag X device. Pressure indicator PI 1357 and pressure indicator transmitter PIT 1357 share a branch connection equipped with an isolation valve.
