Architectural · I-83WAH

Wood Door Transom Head and Sill Detail

Materials

Elements

Partitions Doors Facades / Cladding Floors / Slabs

About this detail

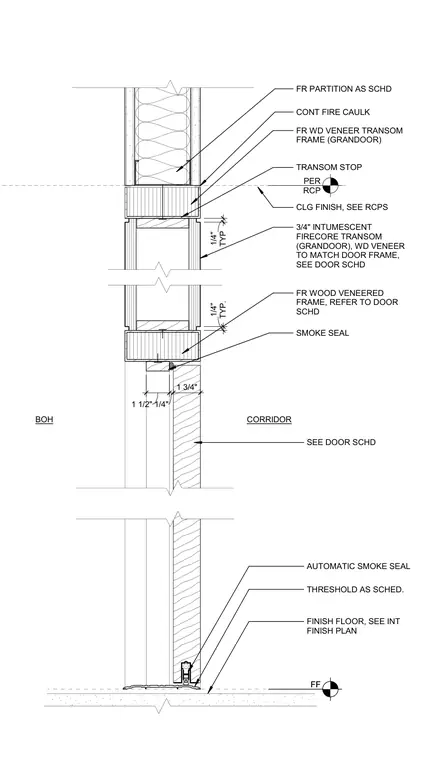

The head detail features a fire-rated wood veneered transom frame tied into a partition per schedule, with continuous fire caulk and a transom stop. A three-quarter-inch intumescent firecore transom panel with wood veneer matches the door frame, set with typical one-quarter-inch clearances. The sill detail incorporates a smoke seal, an automatic smoke seal, and a threshold above the finish floor.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
