Millwork shelving unit featuring plastic laminate side and back panels with adjustable shelving supported by continuous 32-millimeter on-center line boring. The cabinet is secured to the wall with sheet metal straps fastened by two number twelve countersunk, flat head, self-tapping sheet metal screws. The base incorporates a scribe toe kick and is shimmed at the bottom as required to achieve a level installation. Shims are placed top and bottom at attachment points as needed.

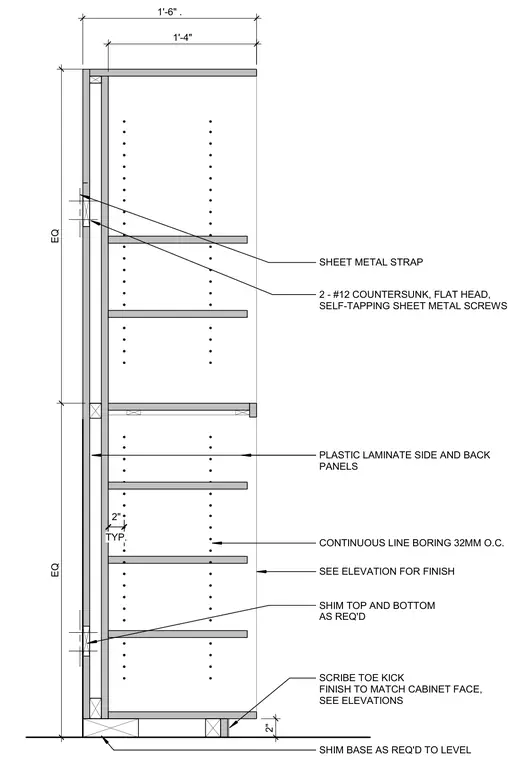

SHEET METAL STRAP 2 - #12 COUNTERSUNK, FLAT HEAD, SELF-TAPPING SHEET METAL SCREWS TYP. 2" SHIM BASE AS REQ'D TO LEVEL SCRIBE TOE KICK FINISH TO MATCH CABINET FACE, SEE ELEVATIONS SHIM TOP AND BOTTOM AS REQ'D CONTINUOUS LINE BORING 32MM O.C. SEE ELEVATION FOR FINISH 2" EQ EQ PLASTIC LAMINATE SIDE AND BACK PANELS 1'-4" 1'-6" .
