Interiors · I-7RK8B

Casework - Laundry Hamper Base

Elements

Doors Stairs Millwork / Casework Roof / Floor Openings

About this detail

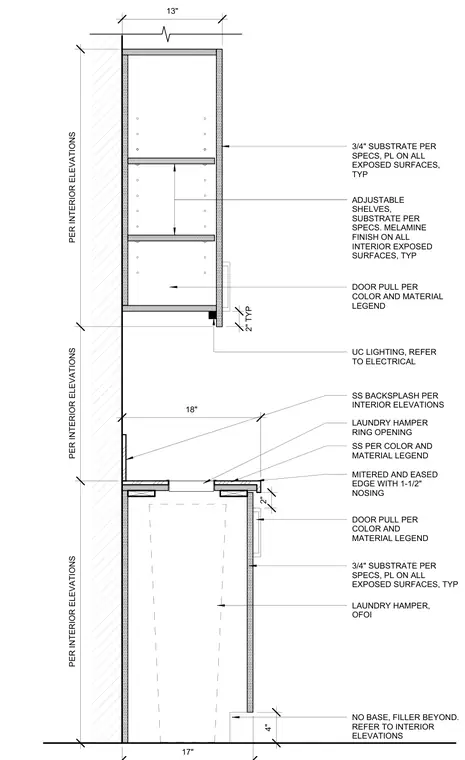

This casework assembly features three-quarter-inch substrate panels with laminate finish on all exposed surfaces, paired with melamine finish on interior exposed surfaces. The lower base unit includes a stainless steel countertop with a mitered and eased edge and a one-and-one-half-inch nosing, an eighteen-inch vertical clearance, a stainless steel backsplash, and a laundry hamper ring opening for an owner-furnished, owner-installed laundry hamper below. The upper cabinet features adjustable shelving and an under-cabinet light fixture. Door pulls are provided per the color and material legend.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
